hw finger joint assembly with ball bearing guide z2
E180 - G180

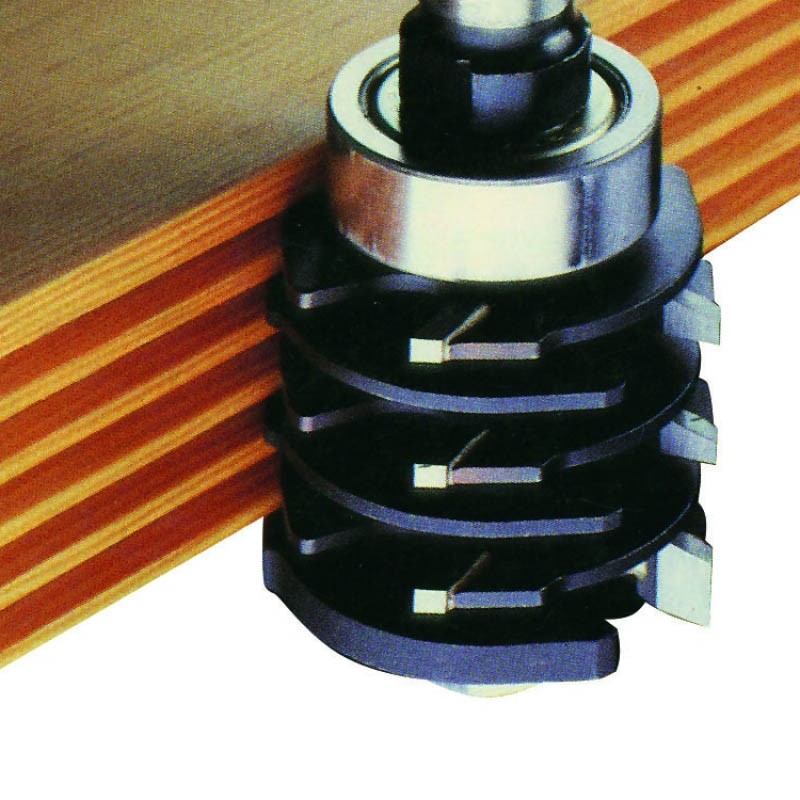

• With this special  Klein^® bit for making finger joints, you will be able to create professional joints like the ones made by the most expert craftsmen. It is made up by five carbide tipped finger joints cutters and one single straight cutter, in order to have much more room for the glue and be strong over time. It cuts all composites, plywood and solid wood. The number of finger cutters mounted varies with the stock thickness; minimum thickness of 11 mm and maximum of 36 mm. Use only on table mounted portable electric router. Pass multiple times when removing large quantities of material.
• Working height 11 to 36 mm.

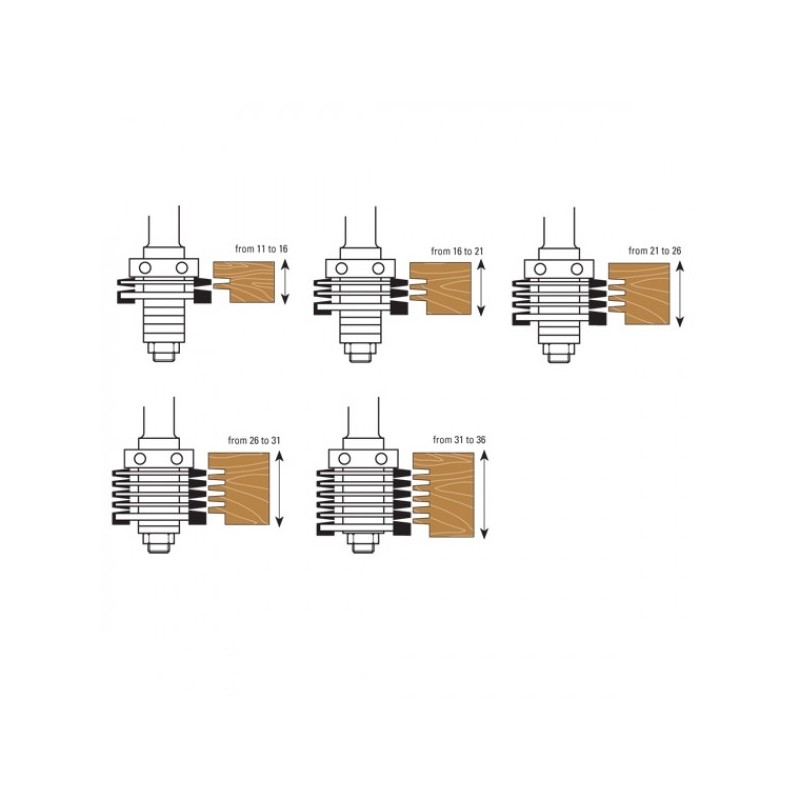

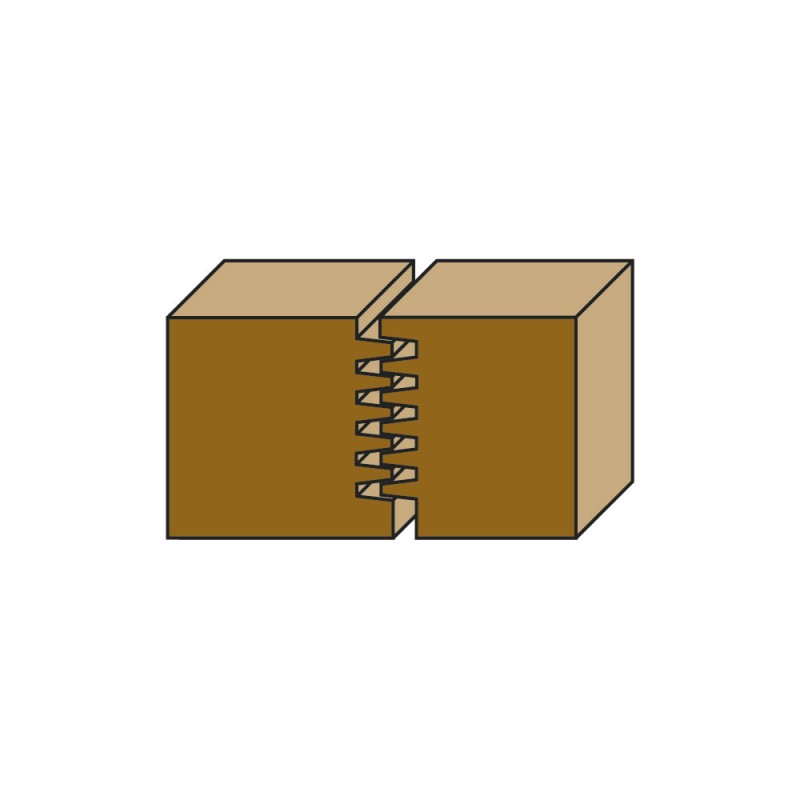

• The Klein Finger-Jointer is an assembly of high-quality carbide tipped finger slot cutters, which together with the straight cutter (or abutting edge) creates a profile, extending the glue line threefold, thus strengthening the joint significantly. The appropriate assembly is chosen according to the wood thicknes. The minimum thickness is 11mm (7/16") with the one-finger slot cutter; the maximum thickness is 36 mm (1 / 3/8") with the five-finger assembly. The Finger-Jointer is suitable for all kinds of glued joints, which are applied mainly for furniture, board edging, ...
