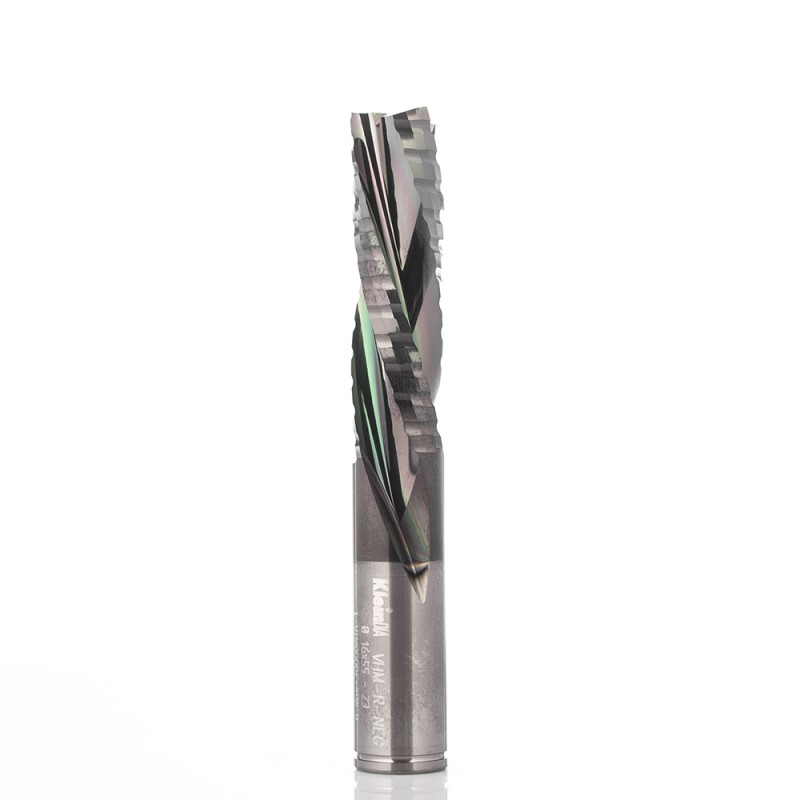

solid carbide spiral router bits finishing/roughing style kleindia®
T354.KD

• Right-hand rotation with "DOWN CUT SPIRAL".
• Semi-finished chip breaker execution
• Polished and coated cutting edges for improved chip ejection and less friction.
• The downcut spiral ejects chips down for an excellent finish on the top side of the panel.
• To be used on machining centres, CNC routers and point to point machines.
• For softwood and hardwood, chipboard, MDF, HF, plywood, plastic coated, mineral materials (CORIAN® ecc.).
• Router bits with diameter from 12 mm, are produced with shank for Seeger retaining rings.

DOWNLOAD THE BROCHURE

The Best performance

KleinDIA® is a DLC (Diamond-like Carbon) anti-friction coating which allows to solve problems of tool abrasion, chip evacuation and chemical attack. A layer of apprx. 1 micron is laid on the tool surface at low temperature, thus not altering the properties of the router bit or knife.
Its high hardness is granted by both Sp2 (Graphite) and Sp3 (Diamond) carbon hybridisation.

TECHNICAL FEATURES and BENEFITS

• High hardness Hv0,025: 2500-3100
• Higher wear resistance, longer tool life
• Low frictional coefficient, less heat and wear
• Very low sticking coefficient, superior chips evacuation
• Thickness: apprx. 1 micron
• Colour: bright black
