collet chucks hsk63f for uniteam machines
T118

Tool holders supplied with nut (without collet) and return ring nut
Threaded nut DIN 6499
Balanced to 24000 RPM
For "UNITEAM".
For the spring collets see our item T123; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
To be used on our adjustable demount device Klein^® T139
The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
The hollow taper shank is produced according to DIN69893 for inserting the Balluff microchip.

CNC machining centres

icona torque wrenches for “standard” nuts

torque wrenches for “standard” nuts

icona wrenches for collet nut standard

wrenches for collet nut standard

icona collet nuts

collet nuts

icona return ring nut

return ring nut

icona ADJUSTABLE DEMOUNT DEVICES

ADJUSTABLE DEMOUNT DEVICES - T139.163.N

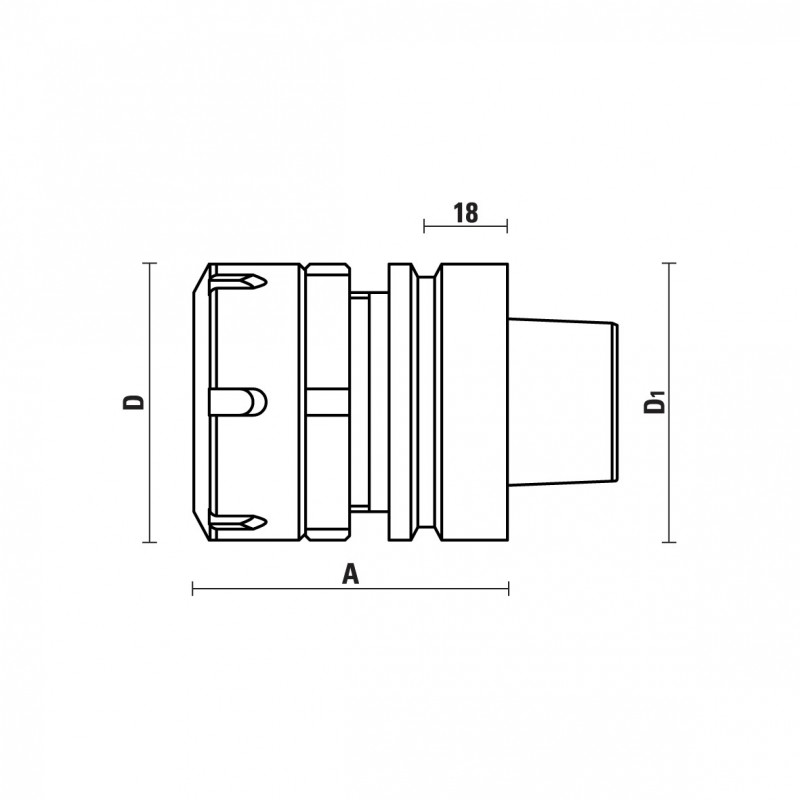

A

D (diameter)

D1

Spring collets

Clamping nut

Rotation

Return ring nut

If you are interested in this product:

Item	A	D	D1	Spring collets	Clamping nut	Rotation	Return ring nut	Price	Quantity
T118.959.R Details	79	63	63	Ø 2÷30 (Art. T123/ER40)	Z091.002.R	RH	Z091.902.R	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
