solid carbide spiral cutters for “lamello®” kleindia® coated

Watch the 360° video

Brand KleinDIA®

solid carbide spiral cutters for “lamello®” kleindia® coated
T169.KD

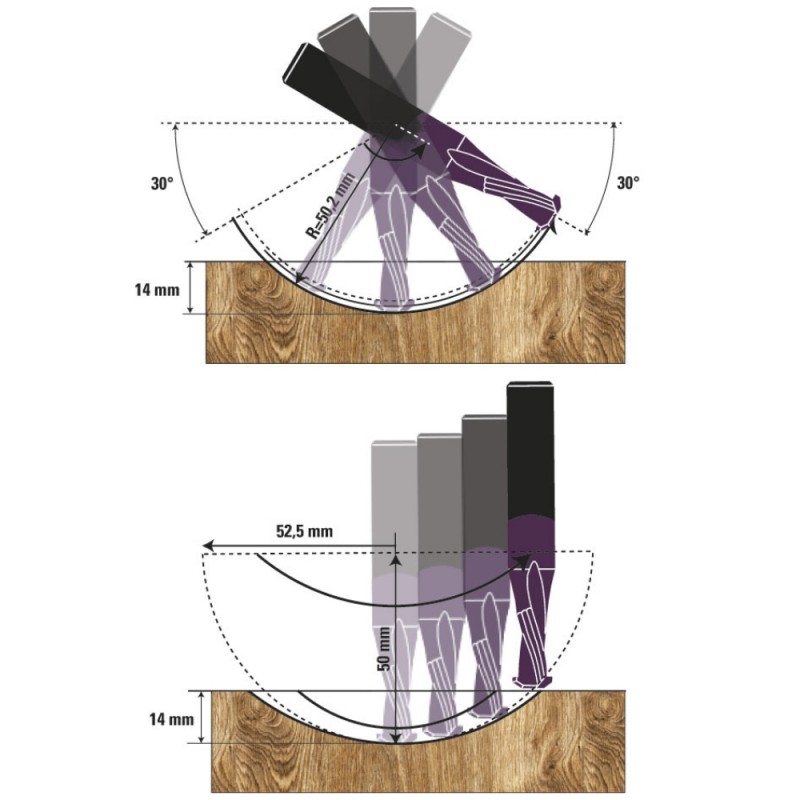

Suitable for making the groove for Lamello Clamex P-System (Clamex P - Tenso P - Divario P) with CNC router with 3 and/or 5 axis
Right hand rotation
Polished and coated cutting edge for improved chip evacuation and less friction for excellent performance!
Longer tool life and greater cutting quality

DOWNLOAD THE BROCHURE

The Best performance

KleinDIA® is a DLC (Diamond-like Carbon) anti-friction coating which allows to solve problems of tool abrasion, chip evacuation and chemical attack. A layer of apprx. 1 micron is laid on the tool surface at low temperature, thus not altering the properties of the router bit or knife.
Its high hardness is granted by both Sp2 (Graphite) and Sp3 (Diamond) carbon hybridisation.

TECHNICAL FEATURES and BENEFITS

High hardness Hv0,025: 2500-3100
Higher wear resistance, longer tool life
Low frictional coefficient, less heat and wear
Very low sticking coefficient, superior chips evacuation
Thickness: apprx. 1 micron
Colour: bright black

Plywood

Softwood

Hardwood

Chipboard

CNC machining centres

Jointer

S (shank)

D (diameter)

B (cutting length)

L (total length)

Z

If you are interested in this product:

Item	S	D	B	L	Z	Price	Quantity
T169.098.RKD Details	12	9.8	23	80	2	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
