three point digital caliper for cutters z3
C.DIGIT.Z3

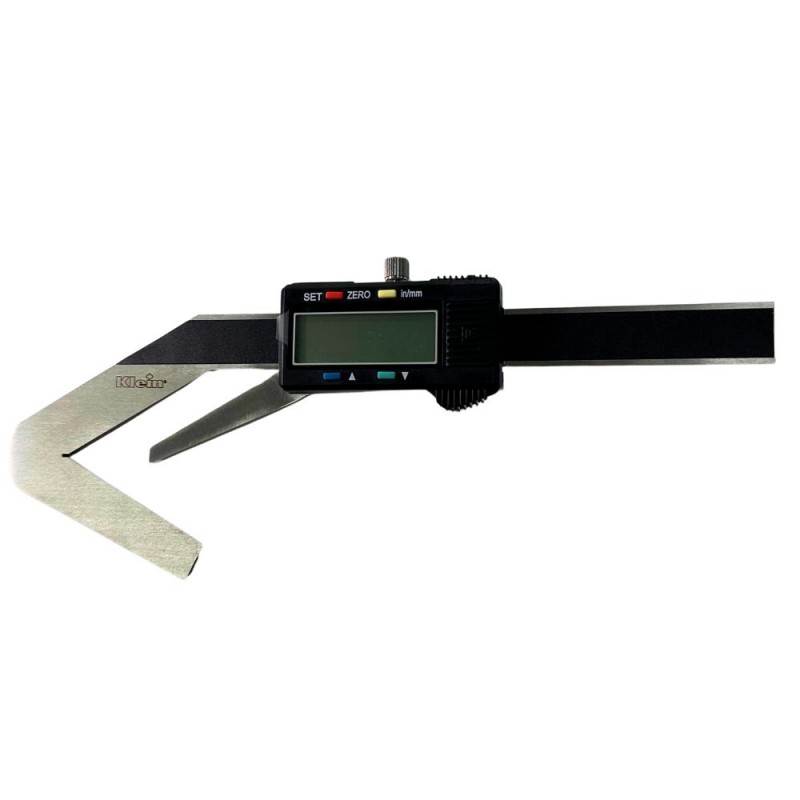

Caliper for measuring the diameter of router bits with three cutting edges (our items T143/T144, T153/T154 and any cutter Z=3).

• Measuring range: 4mm ÷ 40,00 mm / 0,16'' ÷ 1,73''.
• Resolution: 0,01 mm/0,0005''.
• Accuracy: ± 0,05mm/ ± 0,0002''.
• Repeatibility: 0,01 mm/0,0005''.
• Maximum measurement speed: 1,5 m/s - 60 in/s.
• Operating temperature: 0°C - 40°C.
• Storage temperature: -10°C - 60°C.
• Power: 1,5V SR44 (silver oxide cell) - 1 battery.
• Battery life: 1 year continuous usage / 3 year under normal operation.

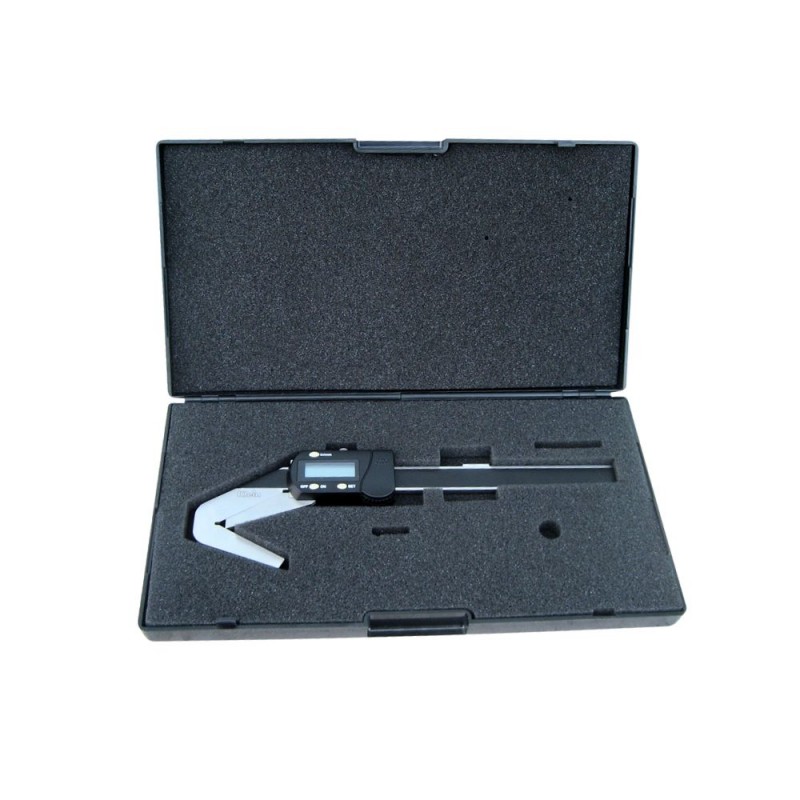

• Plastic case.
