TRIMATIC

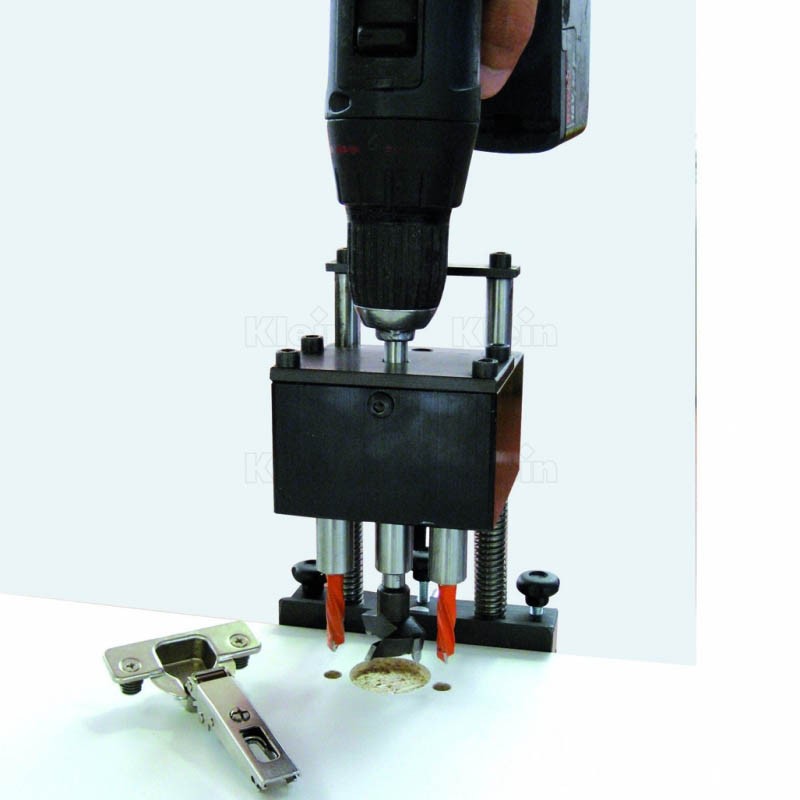

TRIMATIC are drilling jigs which allow making holes required in a single pass using a normal pillar drill or a portable electric drill.

These articles are dedicated to craftsmen and hobbysts who have drilling problems when fitting hinges or positioning shelves with holes at a distance between centres of 32 mm.
The TRIMATIC unit with three tool-holders is suitable to make the three holes to fix the hinge in a single pass with distance between centres depending on the hinge to be fixed. (see outline below) At the moment, 8 types TRIMATIC in different patterns are available, suitable for the most common hinges: Salice, Blum, Hettich, Grass, Hafele, Mepla, Ferrari, Cabineo, ecc.

Tools diameter depends on the hinge used. The central bit must have right hand rotation, the lateral bits have left hand rotation.

NB: Boring bits are not included.
